I2C C09 Digital Waveform Ammeter Dual Channel 40V Current Voltage Meter Multimeter Expansion Board
Current & Voltage Tester
R 1 855,00
Final delivered price — no extra charge at checkout.
Available to order
Delivery confirmed with your price
Colour
As Shown· current
Delivery Included in Price
To your doorstep — no extra charge at checkout
Courier
Best available rate
Est. Delivery
Confirmed with price
Delivery and customs allowance included
Your quantity price is verified before payment
Tracked door-to-door delivery
Standard store estimate from order confirmation, not a guaranteed date. A different estimate shown before checkout takes precedence.
Product reference and dimensions
- Item No
- 6616001884A
- Weight
- 0.350kg
- Dimensions
- 20.000cm × 20.000cm × 5.000cm
Supplier Catalogue
Secure Enquiry
SA Delivery
Local Support
Listing Checked
WhatsApp Support
Sold by HAP Exclusives — sourced from a third-party supplier catalogue and delivered to South Africa.
I2C C09 Digital Waveform Ammeter Dual Channel 40V Current Voltage Meter Multimeter Expansion Board

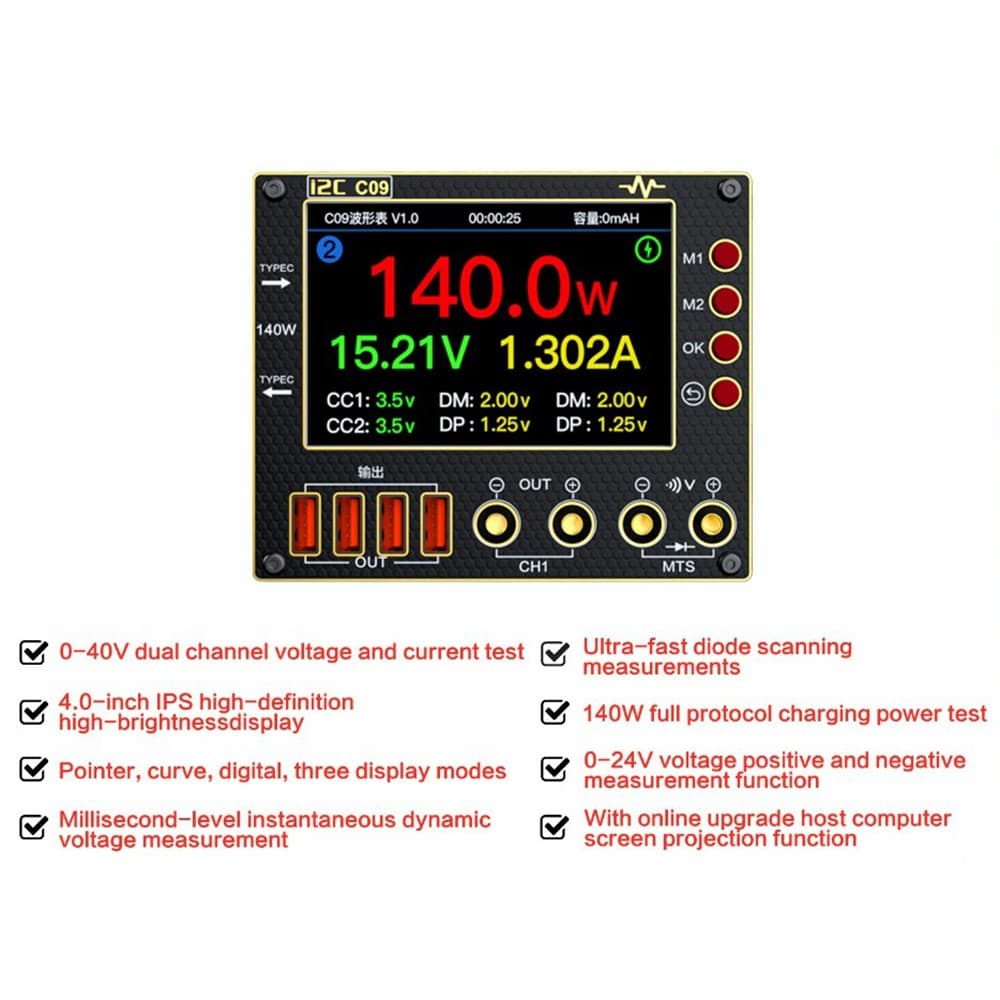

8-in-1 Multi-Function Tester
- Integrates voltage meter, current meter, power meter, waveform analyzer, and charging tester in one device for comprehensive electronic testing.

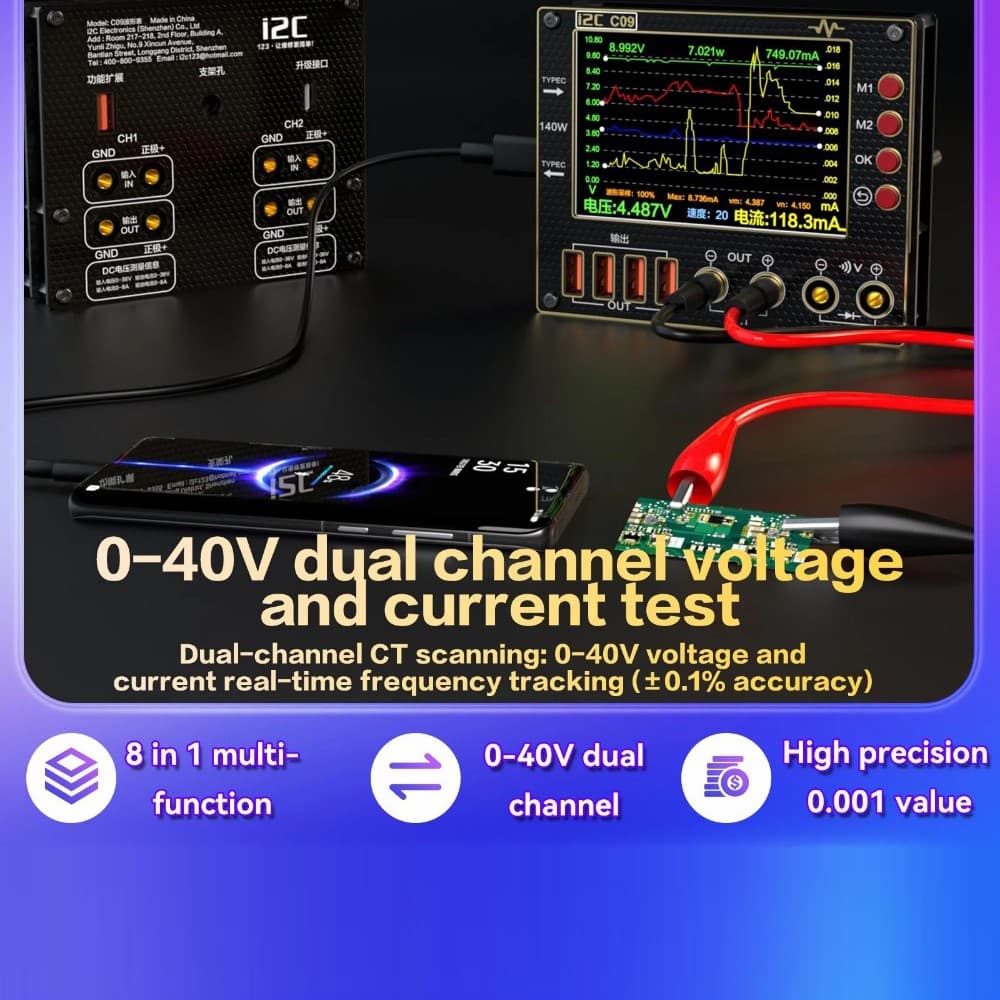

Dual Channel 0-40V Testing
- Simultaneous dual-channel voltage and current measurement with independent CH1 and CH2 channels for versatile testing scenarios.
4.0 Inch IPS HD Display
- High-brightness IPS screen with 320x480 resolution provides clear visibility with three display modes: pointer, curve, and digital.

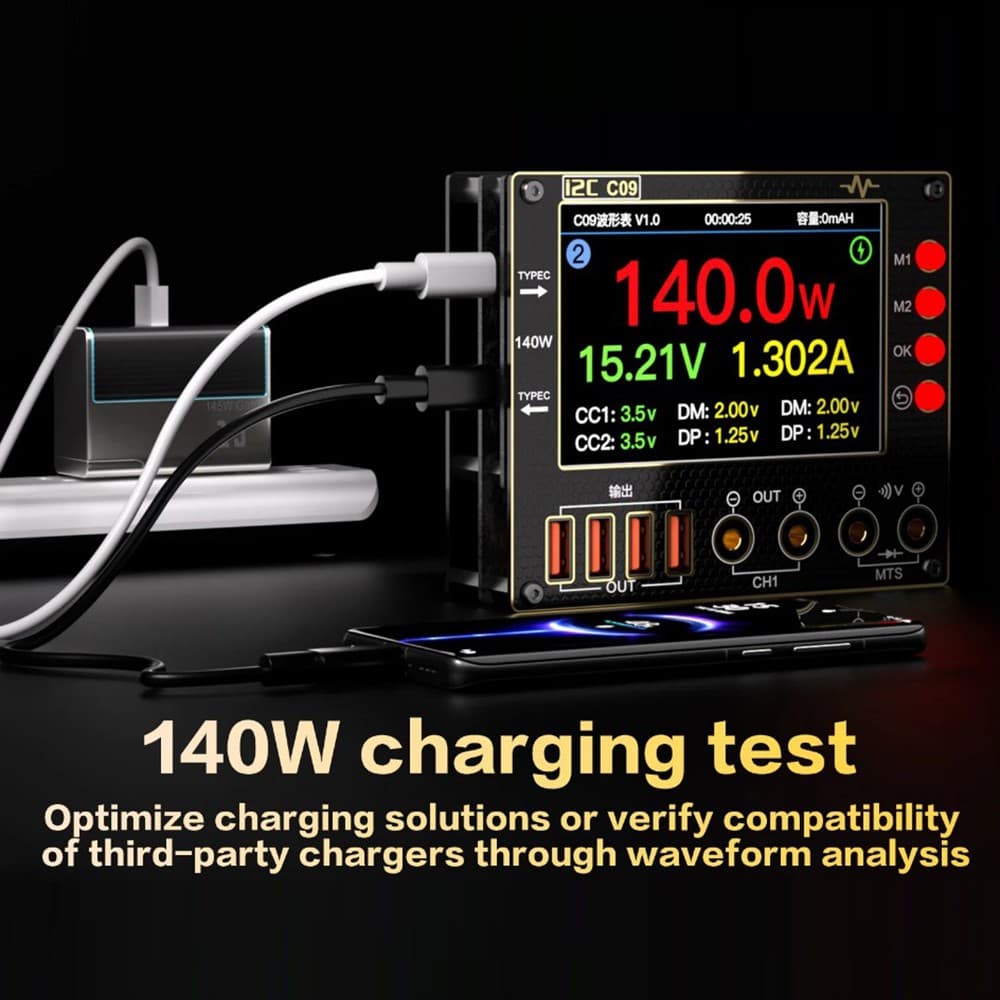

140W Fast Charging Protocol Test
- Supports comprehensive fast charging protocol testing with real-time power monitoring up to 140W capacity.
Millisecond Dynamic Measurement
- Ultra-fast millisecond-level instantaneous dynamic voltage measurement with 0.001 precision value for accurate readings. Specifications: Input Voltage Range: DC 0-40V Power Supply: 5V/2A Diode Test Range: 0-2.8V Resistance Range: 0-50KΩ Voltage Measurement: 0-24V Dual Channel Voltage: 0-40V Current Detection: 0-8A Protection Voltage: <60V Protection Current: <15A Banana Plug Output: 40V/8A USB Output: 20V/2A Voltage Resolution: 1mV Current Resolution: 0.1mA Current Accuracy: 100A Screen Size: 4.0 inch Screen Resolution: 320 x 480 Product Dimensions: 11.4 x 9.3 x 2.9cm Display Type: IPS High Brightness Measurement Precision: 0.001 Frequency Tracking Accuracy: ±0.1% Power Testing: 140W Full Protocol Display Modes: Pointer, Curve, Digital

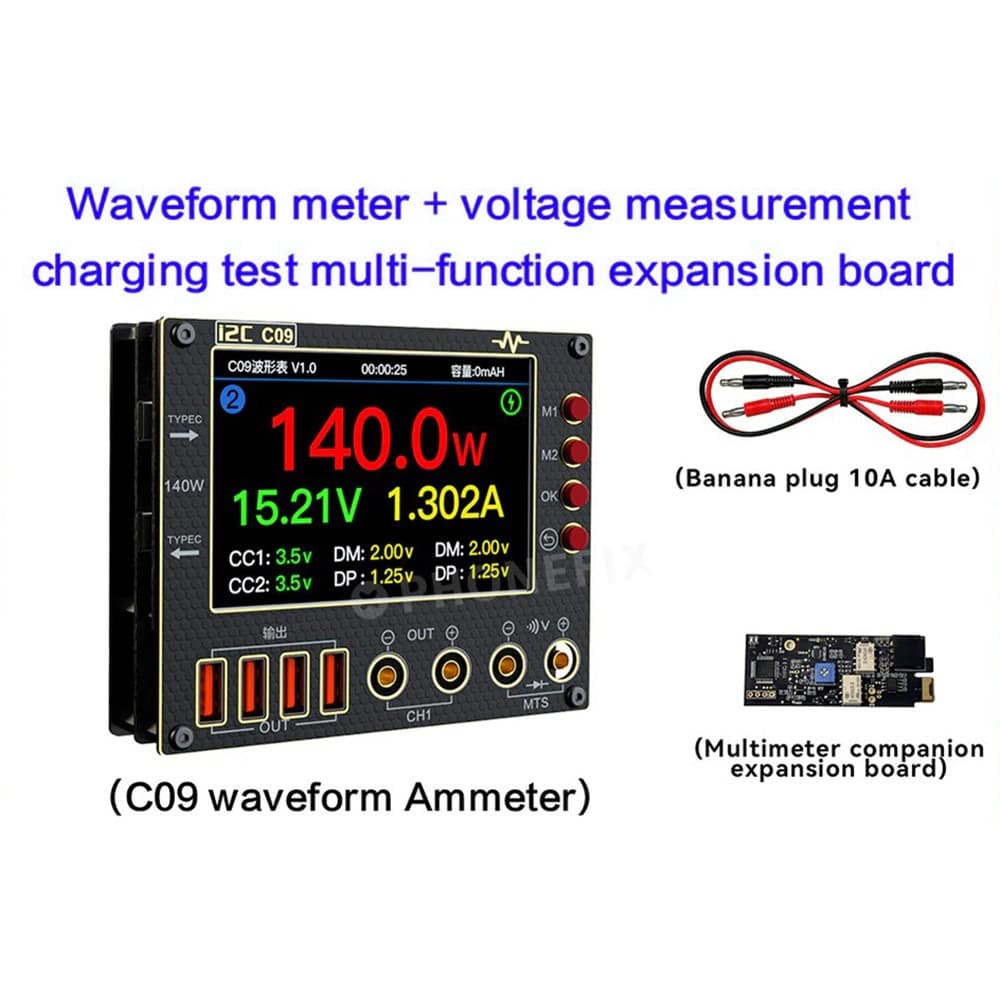

What's in the Box
- 1 x Waveform Ammeter
- 1 x Extension Board
- 1 x USB Cable
